SQC Alloy Steel Material Platform Floor Scale Manufacturers Prices Of Load Cells Shear Beam Load Cell Santwell

Ningbo Santwell Import & Export Co., Ltd offers an exceptional quality range of Pressure Sensors. The quality of the SQC alloy steel material 1ton for platform scale and floor scale manufacturers prices of load cells shear beam load cell is at the leading level in the industry and is inseparable from the hard work and innovation of outstanding technical personnel. We strictly stick to the concept of scientific design, which contributes to the unique appearance and easy-to-use performance of our Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells. Also, we never use inferior raw materials and ensure they are all tested by our QC inspectors, thereby, guaranteeing Pressure Sensors quality. We believe that our product with so many advantages can bring benefits to all customers.

Products Description

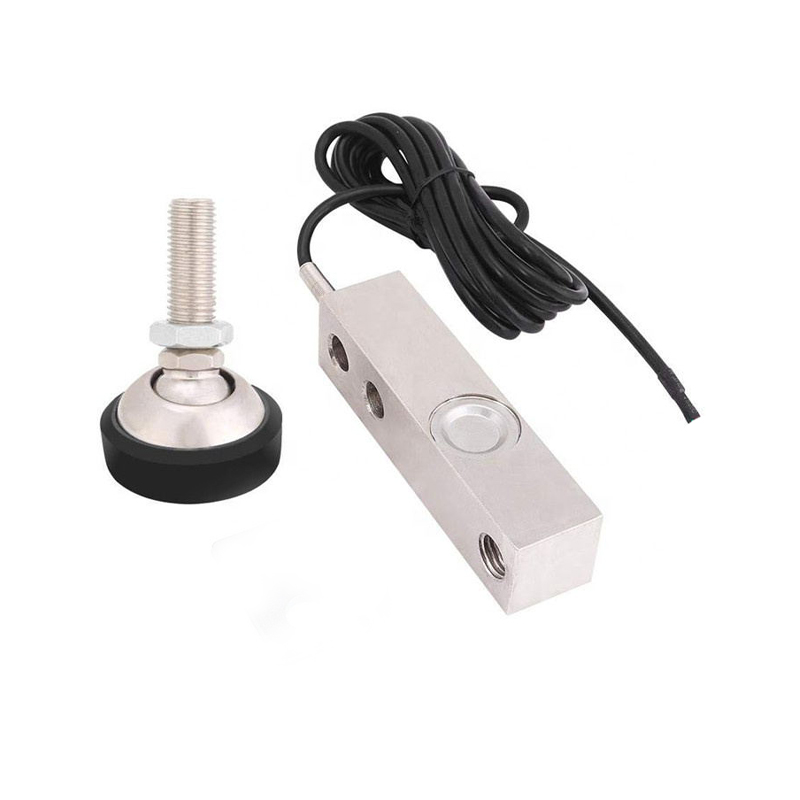

SQC shear beam load cell is made of high-quality alloy steel, with high precision, sensitivity of 2.0, and strong stability.

Technical Parameter
Rated Load	KG	100KG
Sensitivity	mV/V	2.0000±0.002
Total Error	%F.S	±0.02
Creep(30minutes)	%F.S	±0.02
Recommended Excitation Voltage	V	5 ~12 (AC or DC)
Maximum Excitation Voltage	V	15 (AC or DC)
Zero Balance	%F.S	±1
Input Impedance	Ω	380±10
Output Impedance	Ω	350±5
Insulation Impedance	MΩ	≥5000
Safe Overload	%F.S	150
Ultimate Overload	%F.S	200
Operating Temperature Range	℃	(-30~+70)
Compensated Temperature Range	℃	(-20~+60)
Temperature Effect On Load	℃	±0.02%F.S/10
Temperature Effect On Zero	℃	±0.02%F.S/10
Construction		Alloy steel
Protection Class		IP67&IP68
Citation		GB/T7551-2008/OIML R60
Mode of Connection		Input+E:Red Input-E:Black Output+S:Green Output-S:White

Product Category

About Us

FAQ

1. What is the MOQ?
If we don’t have it in stock, the MOQ is different according different models.
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don’t have it in stock, the lead time will be 10-30 days normally.
3. What is the payment terms?
T/T, Western Union, Paypal, Escrow is acceptable.
Escrow is same like paypal, after you place the order and make the payment on .com, company will notify us to make the shipment, your money won’t be released until you get the goods.
If we don’t make the shipment, you still can take back your money.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport .
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail, skype, trade manager, telephone and QQ etc.
