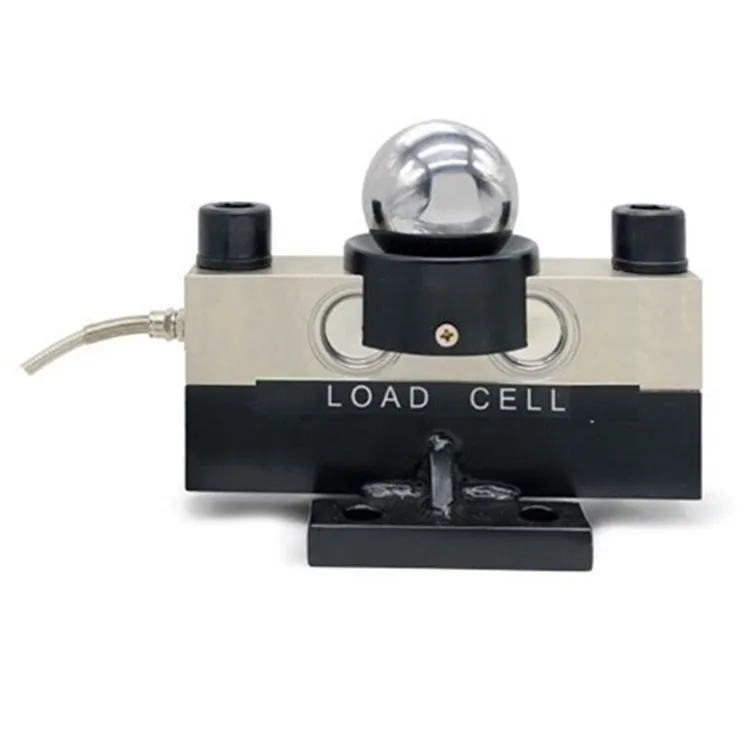

QS Hm9b 30 ton alloy steel analog weight sensor for trucks double shear beam weightbridge load cell Santwell

Having been through countless days and nights,Ningbo Santwell Import & Export Co., Ltd has successfully developed Brand Hm9b QS 30 ton alloy steel analog weight sensor for trucks double shear beam weightbridge load cell. It is bound to catch people's eyeballs in various fields. After Brand Hm9b QS 30 ton alloy steel analog weight sensor for trucks double shear beam weightbridge load cell launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. Ningbo Santwell Import & Export Co., Ltd always adhere to the principle of 'creating values for customers and bringing benefits to stakeholders'. In the process of development, we highly focus on the quality and ensure no flawless product delivered to customers.

Products Description

Technical Parameter
Rated Load	T	10/15/20/25/30/40/50
Sensitivity	mV/V	2.0000±0.002
Total Error	%F.S	±0.02
Creep(30minutes)	%F.S	±0.02
Recommended Excitation Voltage	V	5 ~18 (AC or DC)
Maximum Excitation Voltage	V	24 (AC or DC)
Zero Balance	%F.S	±1
Input Impedance	Ω	775±10/700±7/750±10
Output Impedance	Ω	700±5
Insulation Impedance	MΩ	≥5000
Safe Overload	%F.S	150
Ultimate Overload	%F.S	200
Operating Temperature Range	℃	(-30~+70)
Compensated Temperature Range	℃	(-20~+60)
Temperature Effect On Load	℃	±0.02%F.S/10
Temperature Effect On Zero	℃	±0.02%F.S/10
Construction		Alloy steel
Protection Class		IP67&IP68
Citation		GB/T7551-2008/OIML R60

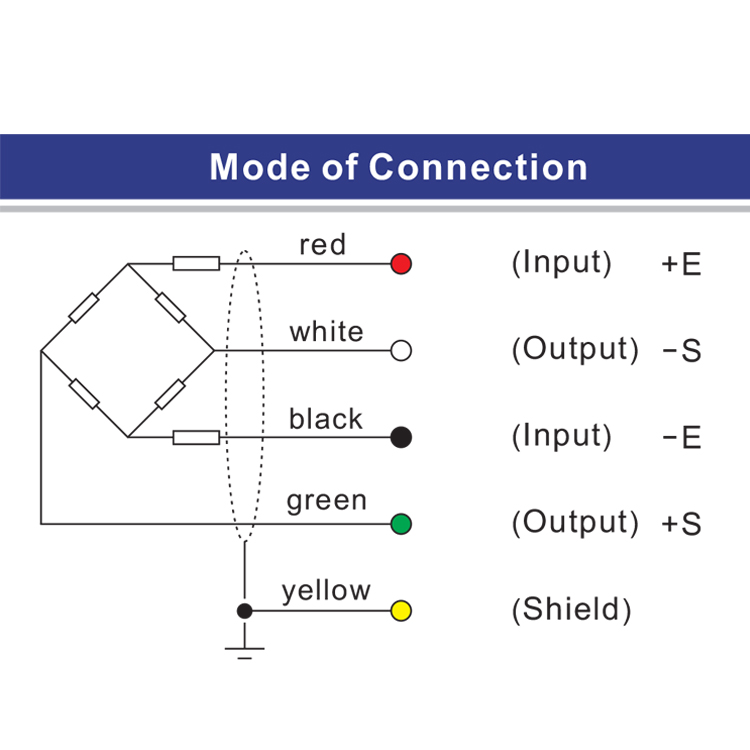

Mode of Connection		Input+E:Red Input-E:Black Output+S:Green Output-S:White
