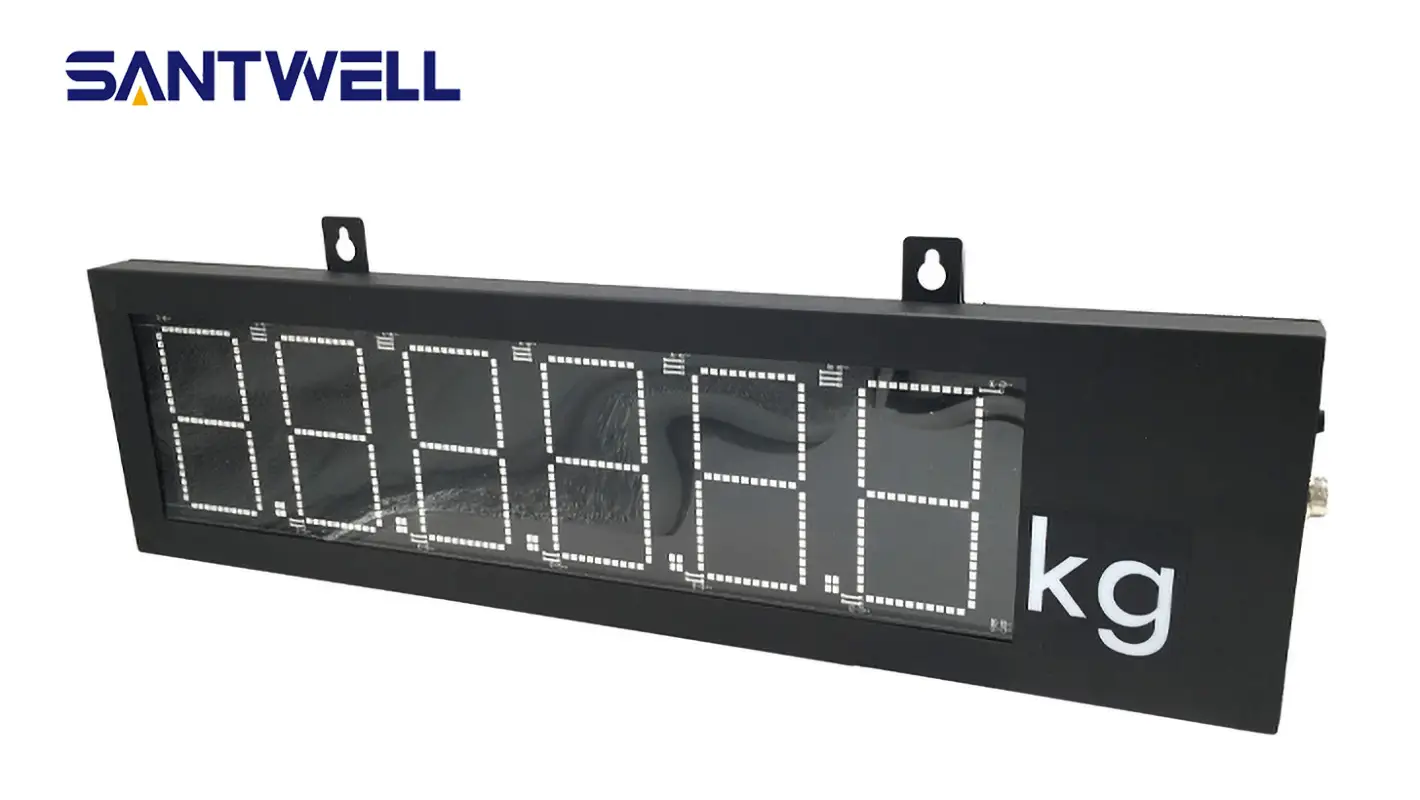

TR Weighbridge Hanging Type Big Display Carbon Steel Santwell

Technologies matter a lot in the manufacturing process of the product. By applying technology, we have successfully upgraded the product.It is popular in the application scenario(s) of Digital Signage and Displays now. LED red character display large screen, connect weighing instrument, sensor display weight can help companies stand out in a fiercely competitive environment and become the industry leader in one fell swoop. Ningbo Santwell Import & Export Co., Ltd relentlessly strive for innovations and changes, hoping to lead the industry development and improve our products and services in our unique way. We are committed to being one of the best enterprises in the market.

Products Description

Products Description

1. Features

I、High brightness LED lamp beads are used in this product, which has the characteristics of high brightness, stable luminescence and high refresh. At the same time, the product can receive two different signals, namely: 1、 1.0-20 mA current loop data (continuous transmission mode, baud rate 600). 2、 Standard RS232C serial data (serial transmission, baud rate 600)。

2. Electrical and Physical Parameters

1、Working voltage: external 5 V-1A power adapter input (optional 5 V2A/5V3A). 2、 Working / storage temperature :-20℃~60℃; avoid sun exposure in the shade at room temperature. 3、 Working environment: this product is only suitable for use below 2000 meters ≤ altitude. 4、 Connection mode: use 2 core cable to connect 5 core aviation plug pin to instrument as shown in table. 5、Display factory according to table 1 mode connection can be directly matched: Yaohua, Ke Li, Weiying, Yu test, Zhongfei, and other automotive balance meters do not need to change the line can be used directly; if the user has special requirements can be changed according to table 1(DB9/DB15/5 core aviation plug and other connectors). Top loose, Heng Tian and other automobile scale instrument line change parameters used.

 If the display fails, non-professional maintenance personnel please do not open the back cover of the display, please notify the dealer or send the product back to our company for maintenance. This machine will be used by the supplier for one year of non-artificial damage free warranty and lifetime technical services, thank you for your purchase and use.

Chart:1 0-20mM Current Loop Mode				Chart：2 RS-232C Modalities
5 core aviation plug Screen end	Instrument interface DB15 interface (Reference A9 example)		5 core aviation plug Screen end	Instrument interface DB15 interface (Reference A9 example)
1 and 4 short connections			1
2	+OUT--9 Output		2
3			3---RXD Input	TXD---Output
4			4
5---GND Ground	-OUT--10 Ground		5---GND Ground	GND Ground

Long 60* High 16* W 2.6(CM)

4 Inches

Display colors: red, green optional

LED-4 series display can match the instrument model and wiring mode:

Serial number	Instrument name	RED TXD	BLACK GND	communication mode	Instrument baud rate	Remarks
1	A9/DS3 series	9	10	electric current loop	600	plug and play
	A9/DS3 series	11	8	RS232	600	plug and play
2	K9/D2008 series	9	10	electric current loop	600	plug and play（Note: The old yellow and white buttons are not available）
3	A12E Custom Series	5	1	RS232	600	plug and play
4	A23 series	11	8	RS232	600	Change baud rate 600
5	HT9800 series	2	1	electric current loop	600	Change of parameter F1.6/3、F1.8/1(new instrument after 2012）
8	A Q10	3	5	RS232	600	Line change
9	topDS822-X6	6	7	electric current loop	600	Line change; parameter change Bt=1, adrBt=12
10	Weying T800,T660	9	10	electric current loop	600	plug and play
11	Zhongfei A9 series	9	10	electric current loop	600	3-inch ,5-inch short aviation plug 1-3-pin; plug and play
12	XK3108A	2	5	RS232	1200	Need to customize large screen
13	XK3101-K	9	10	electric current loop	600	plug and play（V1.07 later versions）
14	Yaohua C8+	DP+	DP-	electric current loop	600	plug and play（V1.07 later versions）
15	Yaohua A12 Eelectric current loop	3	2	electric current loop	600	plug and play
16	DS8/DS10 series	9	10	electric current loop	600	plug and play
17	Jin Fulin Series indicator	3	7	RS232	600	Change parameter P5 set 0
