Santwell is a load cell company specializing in R&D, production and sales of high precision weighing sensor products.
BHA Truck Weight Limit Dedicated Alloy Steel Stainless Steel Tension Load Cell Santwell

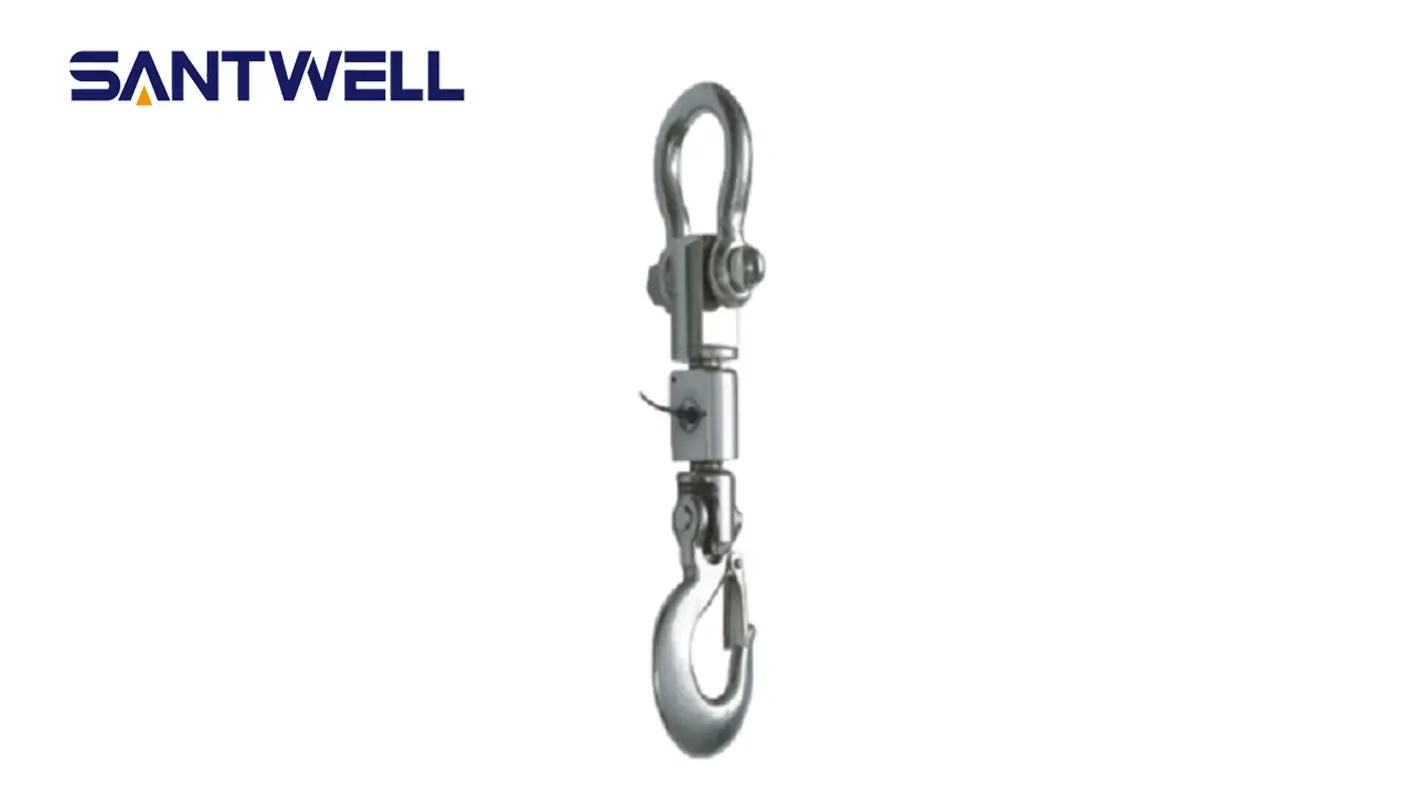

IP67 Plate Ring Type Lift Weight Sensor Overload 5t 6t 8t 12t 18t Load Cells BHA can promote the further development of enterprises, open up new markets, stand out in the fierce competition environment, and become the leader in the industry.The widespread use in Force Sensors & Load Cells of the product helps it win a lot of attention in the market.
State-of-the-art technologies are introduced and upgraded for the more efficient and stable manufacturing of the product. IP67 Plate Ring Type Lift Weight Sensor Overload 5t 6t 8t 12t 18t Load Cells BHA functions perfectly in the application scenario(s) of Ungrouped. Technological innovation promotes products to achieve an invincible position in fierce competition. At present, Ningbo Santwell Import & Export Co., Ltd are still a growing enterprise with a strong ambition to become one of the most competitive enterprises in the market. We will continue to research and develop new technologies for the birth of new products. Also, we will grasp the precious tide of opening up and reform to attract customers all over the world.
| Model Number: | BHA | Place of Origin: | Zhejiang, China |
| Brand Name: | santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 5t,6t,7.5t,8t,10t,12t,18t,20t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.05%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ulitimate Overload: | 200%F.S |
Technical Parameter | |
Rated Load | 5t,6t,7.5t,8t,10t,12t,18t,20t |
Sensitivity | 2.0000±0.002mV/V |
Total Error | ±0.05%F.S |
Creep(30minutes) | ±0.02%F.S |
Recommended Excitation Voltage | 5V~12V(AC or DC) |
Maximum Excitation Voltage | 15(AC or DC) |
Zero Balance | ±1%F.S |
Input Impedance | 380±10Ω |
Output Impedance | 350±5Ω |
Insulation Impedance | ≥5000MΩ |
Safe Overload | 150%F.S |
Ultimate Overload | 200%F.S |
Operating Temperature Range | (-30~+70)℃ |
Compensated Temperature Range | (-20~+60)℃ |
Temperature Effect On Load | ±0.02%F.S/10℃ |
Temperature Effect On Zero | ±0.02%F.S/10℃ |
Construction | Alloy Steel |
Protection Class | IP67&IP68 |
Citation | GB/T7551-2008/OIML R60 |
Mode of Connection | Input+E:Red Input-E:Black Output+S:Green Output-S:White |
If we don’t have it in stock, the MOQ is different according different models.
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don’t have it in stock, the lead time will be 10-30 days normally.
3. What is the payment terms?
T/T, Western Union, Paypal, Escrow is acceptable.
Escrow is same like paypal, after you place the order and make the payment on .com, company will notify us to make the shipment, your money won’t be released until you get the goods.
If we don’t make the shipment, you still can take back your money.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport .
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail, skype, trade manager, telephone and QQ etc.
